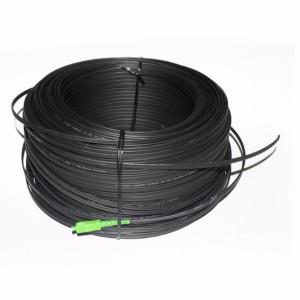

SC APC 1F Simplex Single Mode G657A1 Fiber Optic Pigtail
Ask Latest Price
Video Channel
Brand Name :CY COM
Model Number :Pigtail SX SC APC 110M
Certification :ISO9001:2015 , ISO14001:2015, RoHS,SGS
Place of Origin :Shenzhen China
MOQ :10PCS
Price :Negotiable
Payment Terms :L/C, T/T, Western Union
Supply Ability :30000pcs per day
Delivery Time :3-5 working days
Packaging Details :PE bag or plastic box and Carton box
Fiber Type :G657A or G652D
Jacket Color :Black or White
Jacket Material :LSZH
Dimension :(5.1±0.1)mmX(3.0±0.1)mm
Strength Member :FRP& Steel Wire
Connector type :SC/APC or SC/UPC
Application :FTTH FTTB FTTX Network
more
Contact Now

Add to Cart
Find Similar Videos
View Product Description
SC APC 1F Simplex Single Mode G657A1 Fiber Optic Pigtail
FTTH SC APC 1F Simplex Single Mode G657A1 Pigtail Fiber Optic
Description:

FTTH patch cord /pigtails are used for linking the equipment and components in the fiber optic network. They are with various kinds of fiber optic connector types. The fiber optic patch cord types are classified by the fiber optic connector types. For example, we name SC fiber optic patch cord because this cable is with SC fiber optic connector. There are PC, UPC, APC type fiber patch cord. They are different because of the polish of fiber connector.

.

Features :
Good durability
Good exchangeability
High temperature stability
Low insertion loss and back reflection loss
Superior Quality Standard PC/UPC/APC Polishing
Application:

FTTH,LAN,PON & Optical CATV.

Telecom Net

Optical Fiber Communication System

Parameters

Item
Specification
Single mode
Multi-mode
Return Loss
UPC≥50dB,APC≥60dB
≥40dB
Isertion Loss
≤0.3dB
Repeatability
≤0.1dB
Interchange
≤0.2dB
Fiber Count
1/2 Core
Insert & Draw Time
≥1000
Operating Temperature
-40~+85℃

SC APC 1F Simplex Single Mode G657A1 Fiber Optic Pigtail
SC APC 1F Simplex Single Mode G657A1 Fiber Optic Pigtail
SC APC 1F Simplex Single Mode G657A1 Fiber Optic Pigtail
